Cesar Niculescu

The Pine Nest

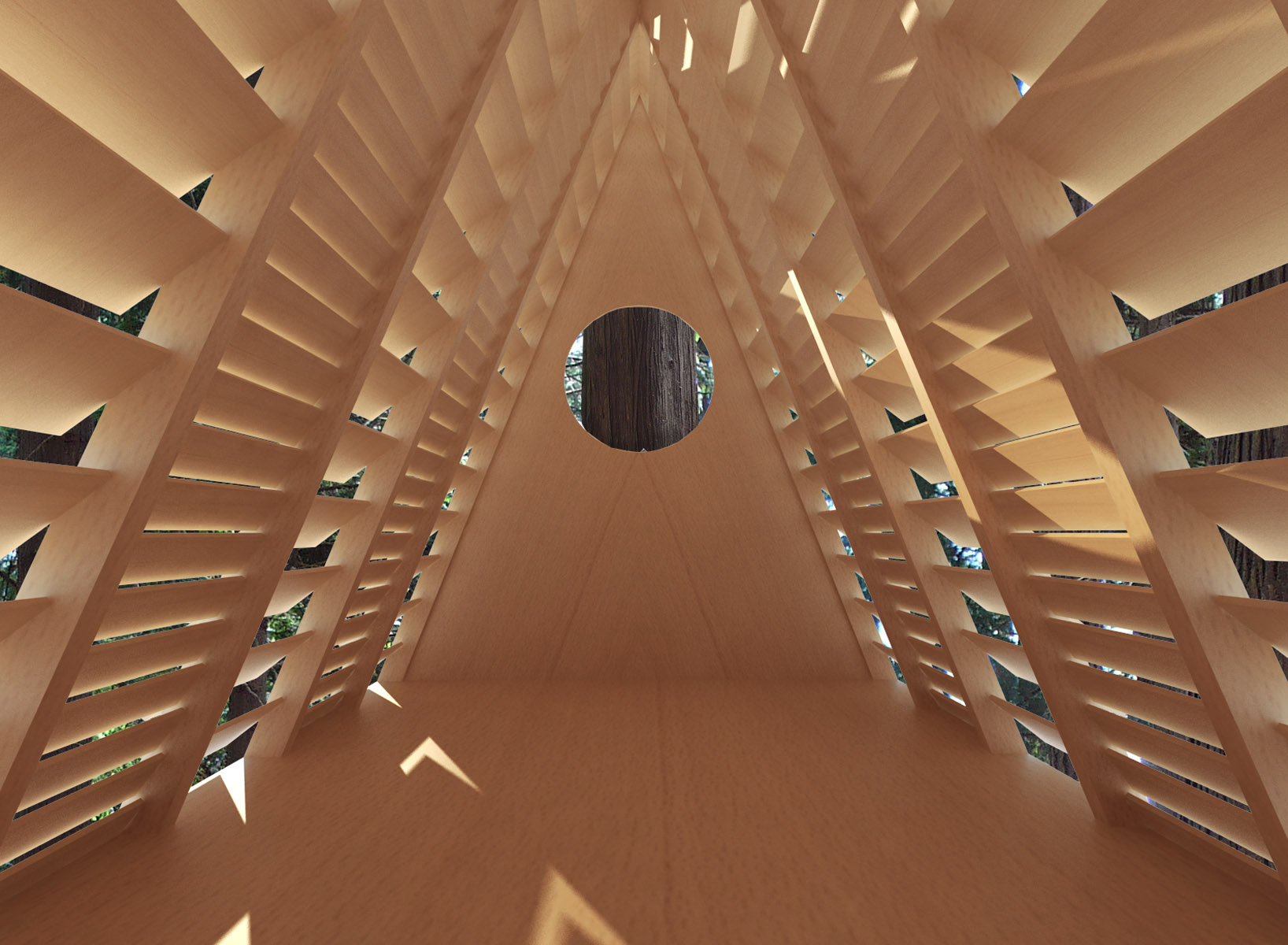

Interior Atmosphere

Partnership with
Vahid Farbod
Sean M. He
Eytan Fisz
Professor
AnnaLisa Meyboom
Design Completed
March 2015
Competition
Fast + Epp ArchEng Design Competition
Position
Honorable Mention

The Pine Nest was designed as a minimal light wood treehouse. The structure provides a quiet space to experience the forest at a different vantage point, meditate or sleep. By using inexpensive materials and following a certain repetition, the treehouse was designed to be easy to assemble. A series of such nests would provide an elevated campground, giving students a place to take in the beautiful scenery by which they are surrounded.

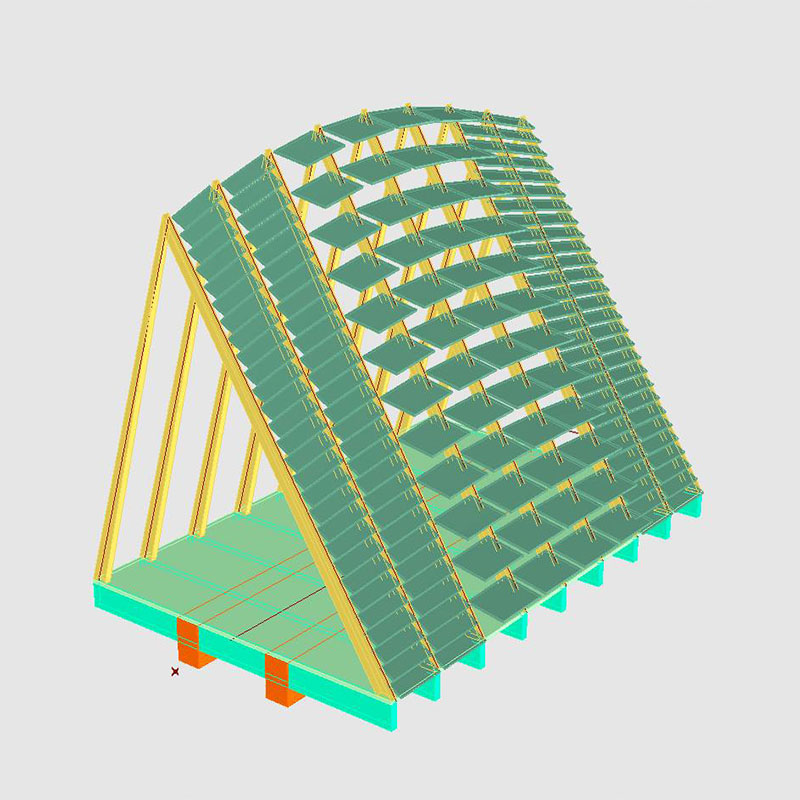

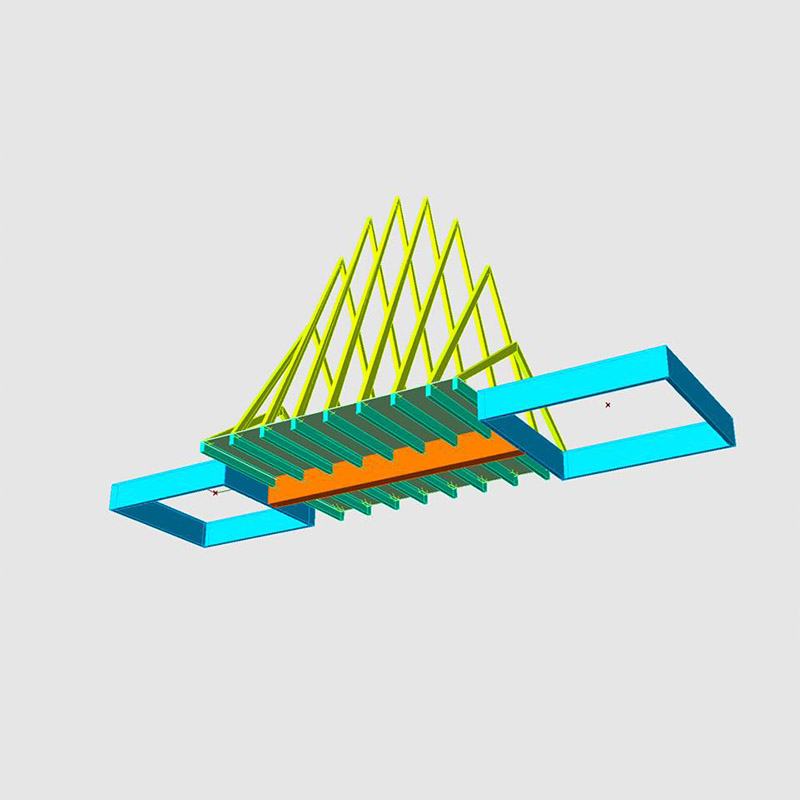

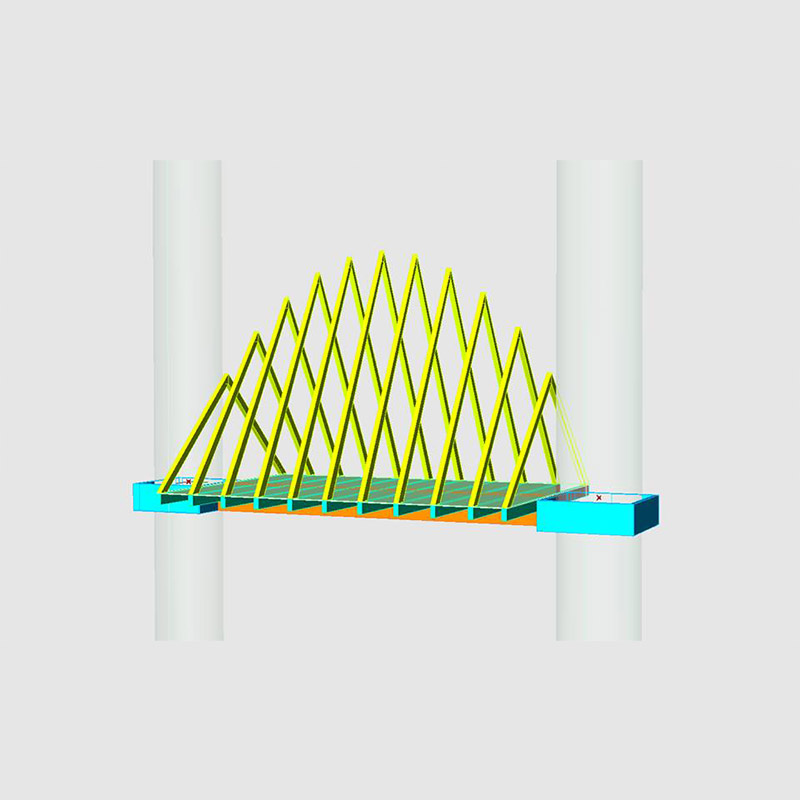

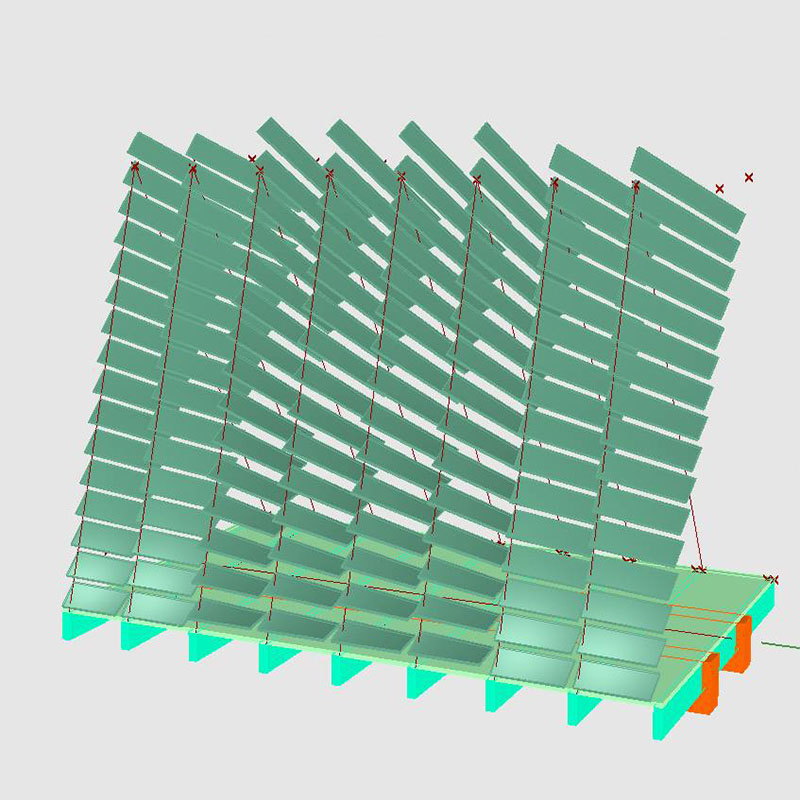

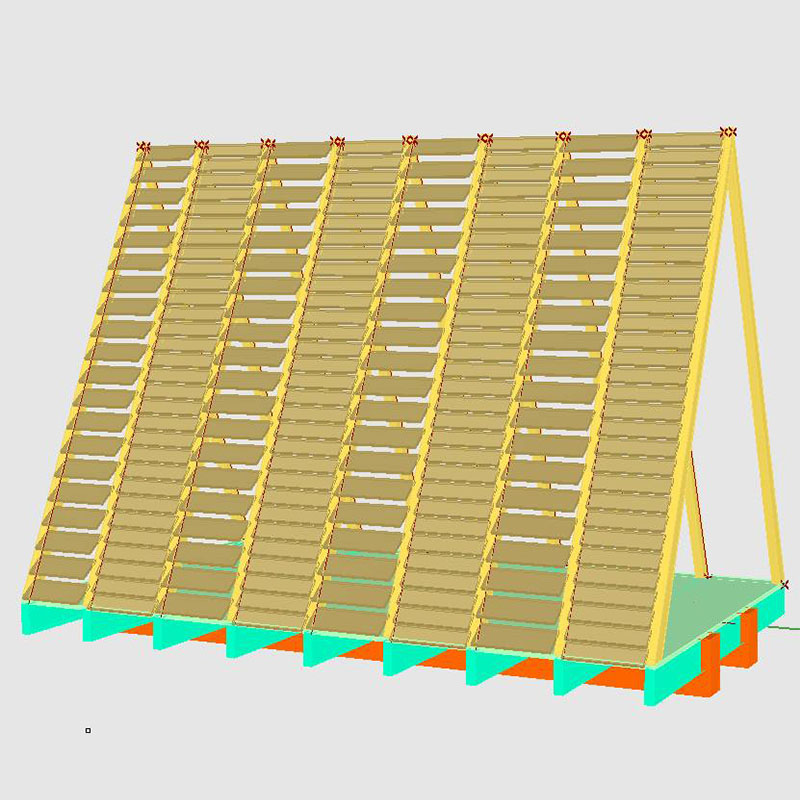

Two 2x10 beams span across two trees, anchored onto the trees using Treehouse Attachment Bolts. These bolts can retract to allow for tree growth and thus does not harm the tree. 2x6 joists are aligned with 2x4 triangular truss members above a plywood deck. The envelope is composed of angled plywood members. They are positioned and sized in an alternating sequence to provide wind and rain protection, while still allowing air to circulate and providing openings to view out from the structure.

Floor Plan

Roof Plan

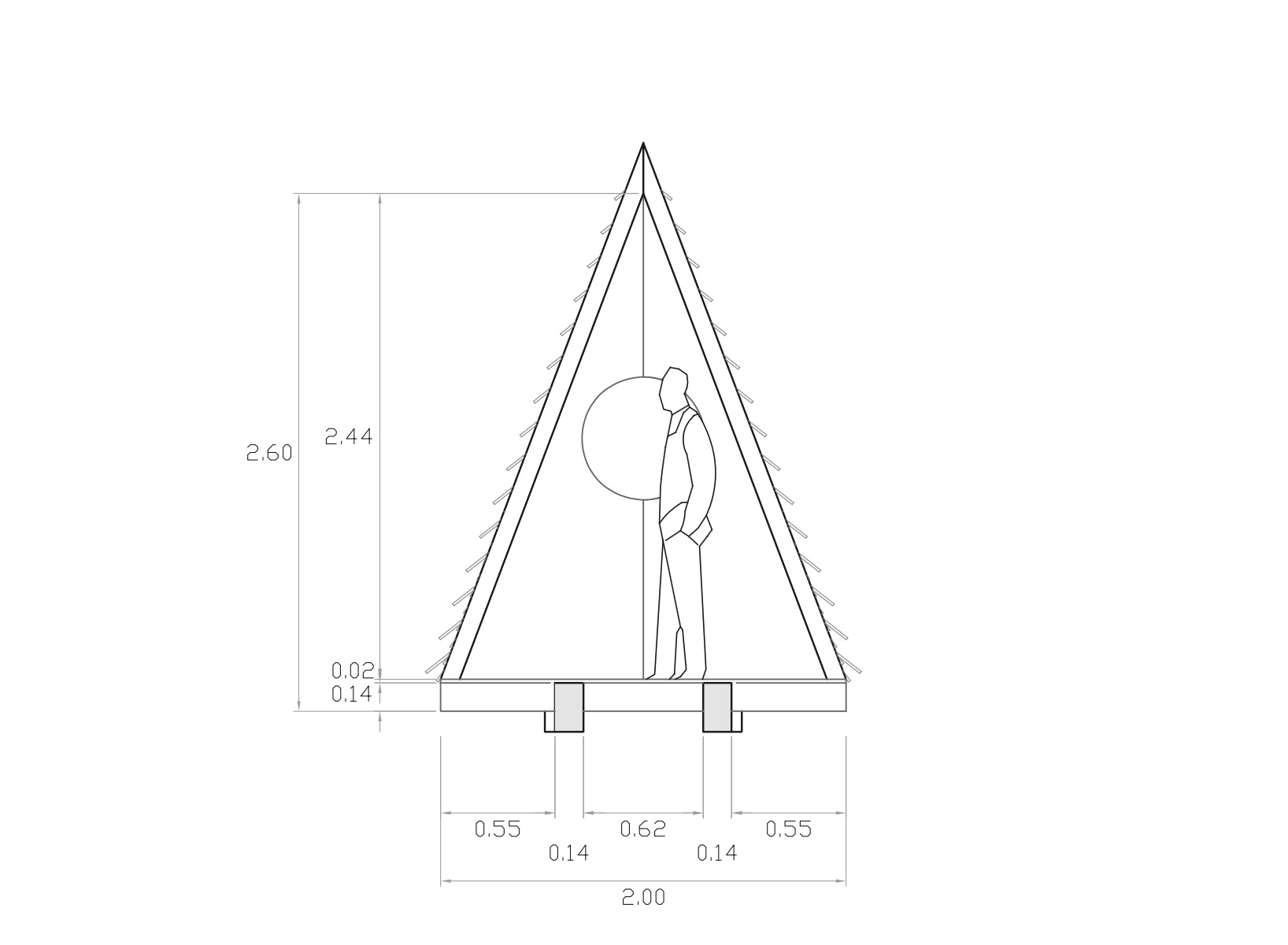

Section

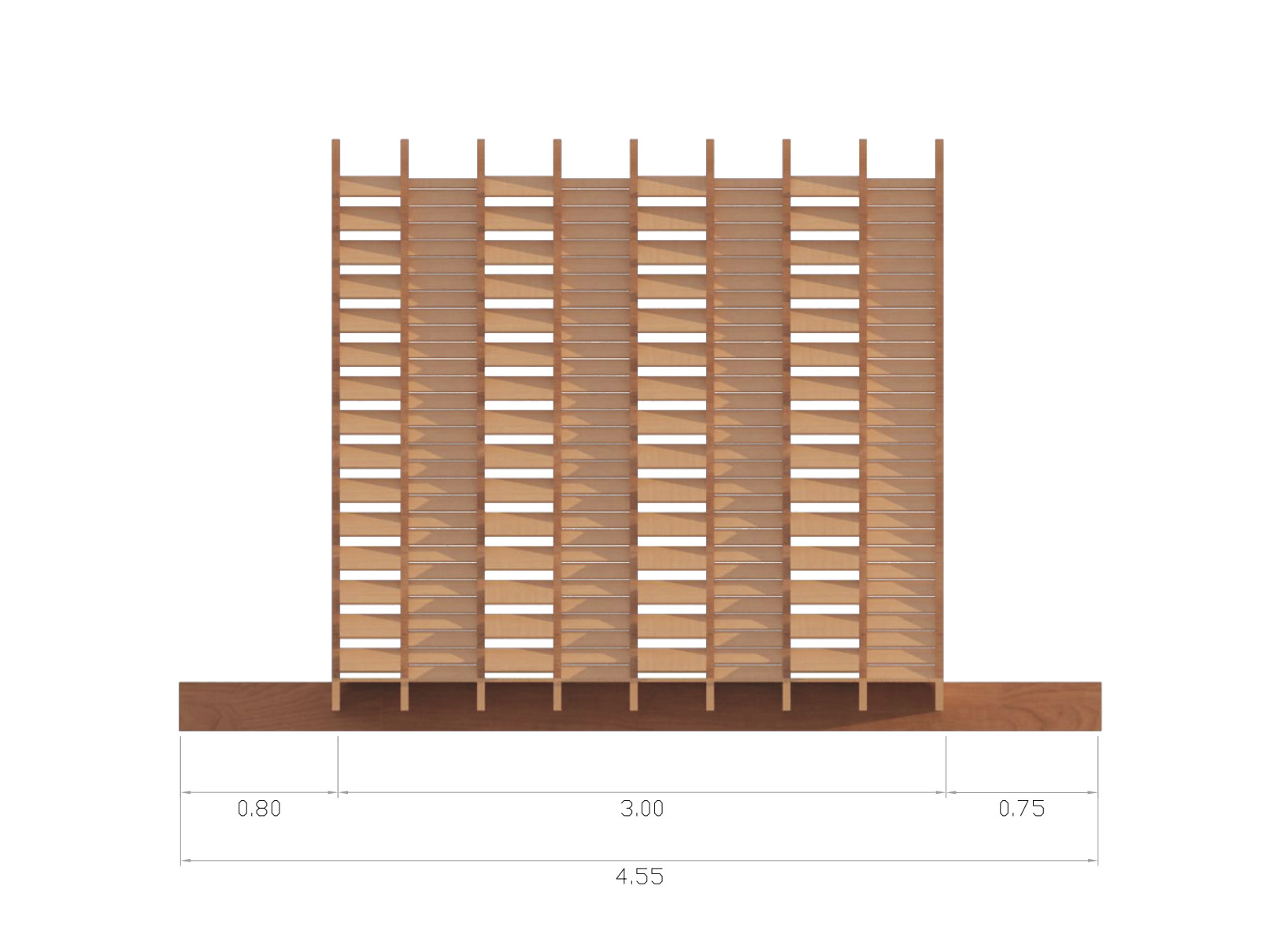

Elevation

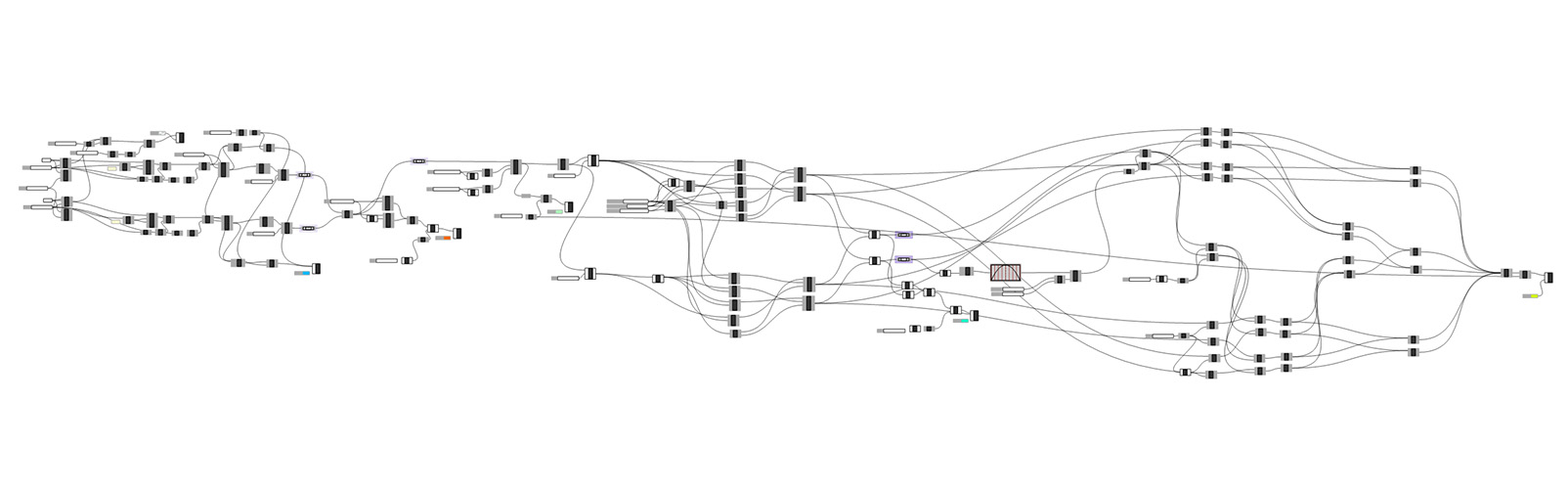

To provide the most flexibility with dimensioning structural and facade members, a grasshopper definition was developed to rapidly output a new model. These models could be used by our structural engineers to determine ideal sizing.
