Cesar Niculescu

Highbury Cafe

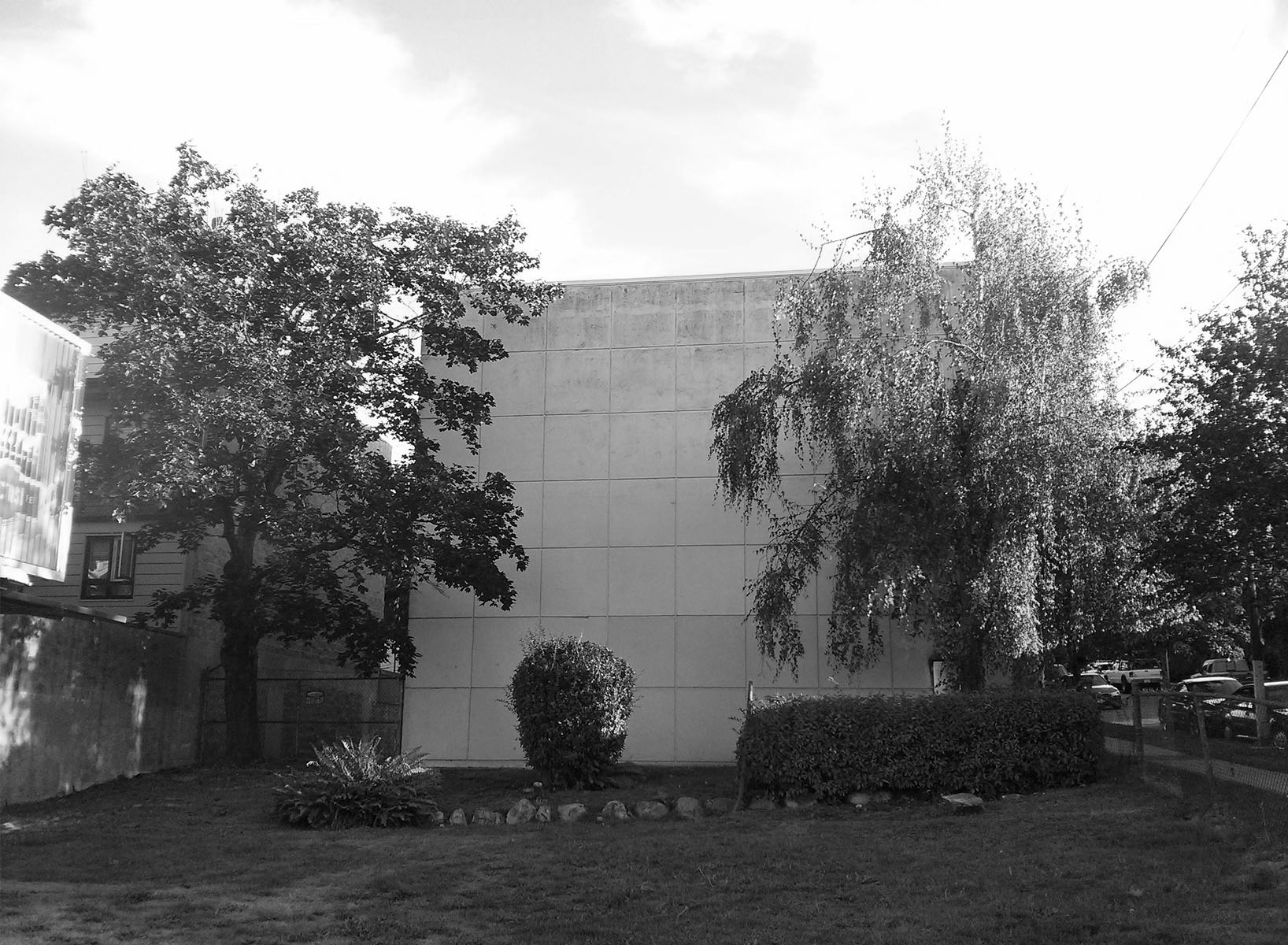

Existing Condition

Professor
Greg Johnson
Design Completed
December 2015
Project Area
370 sqm

In Communicating Construction, we were given the task to repurpose an old energy transfer station. In this proposal, the building is converted into a cafe and bookshop. This project explores documenting a project through construction drawings, specifications and details.

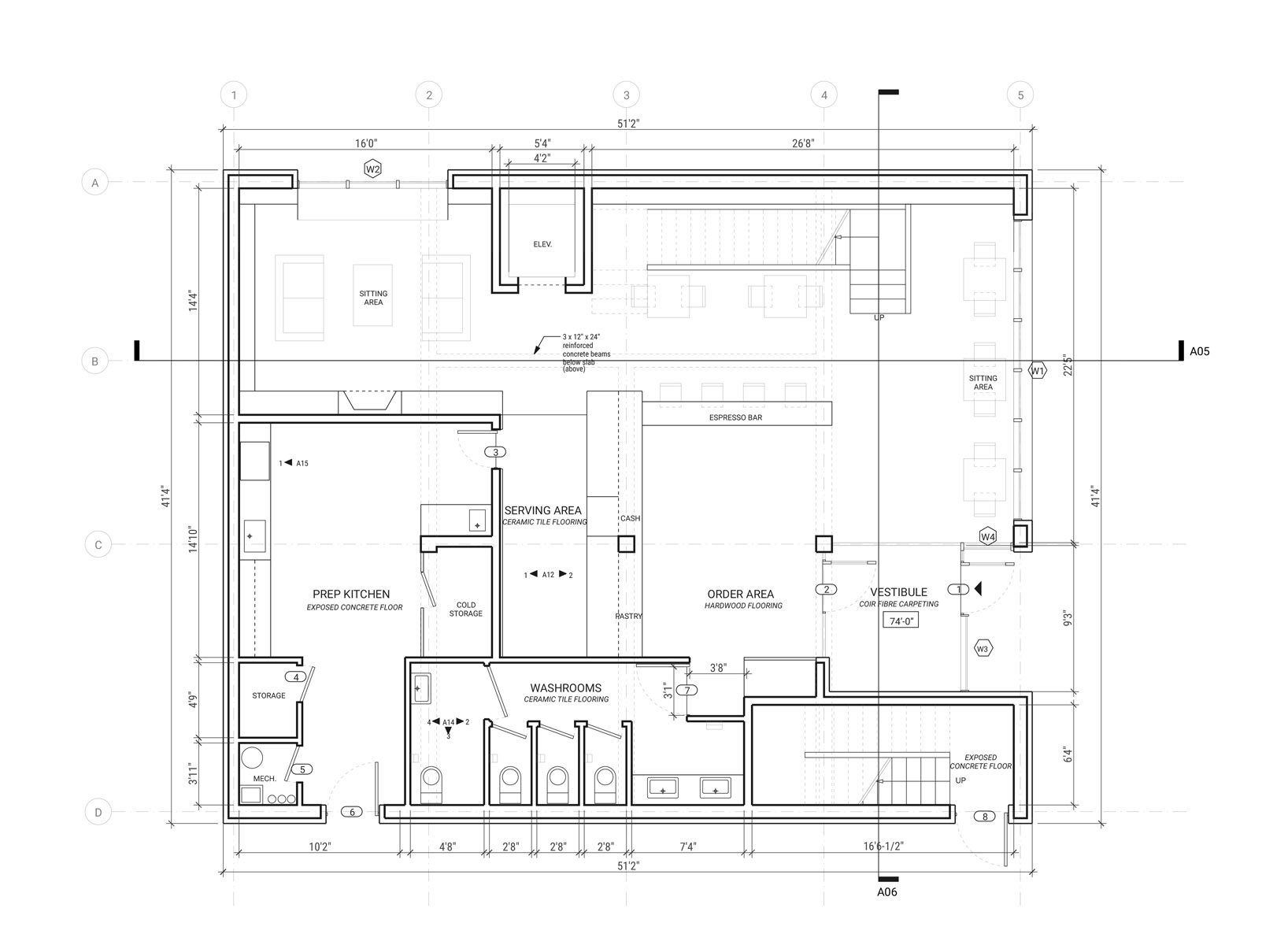

Ground Floor Plan

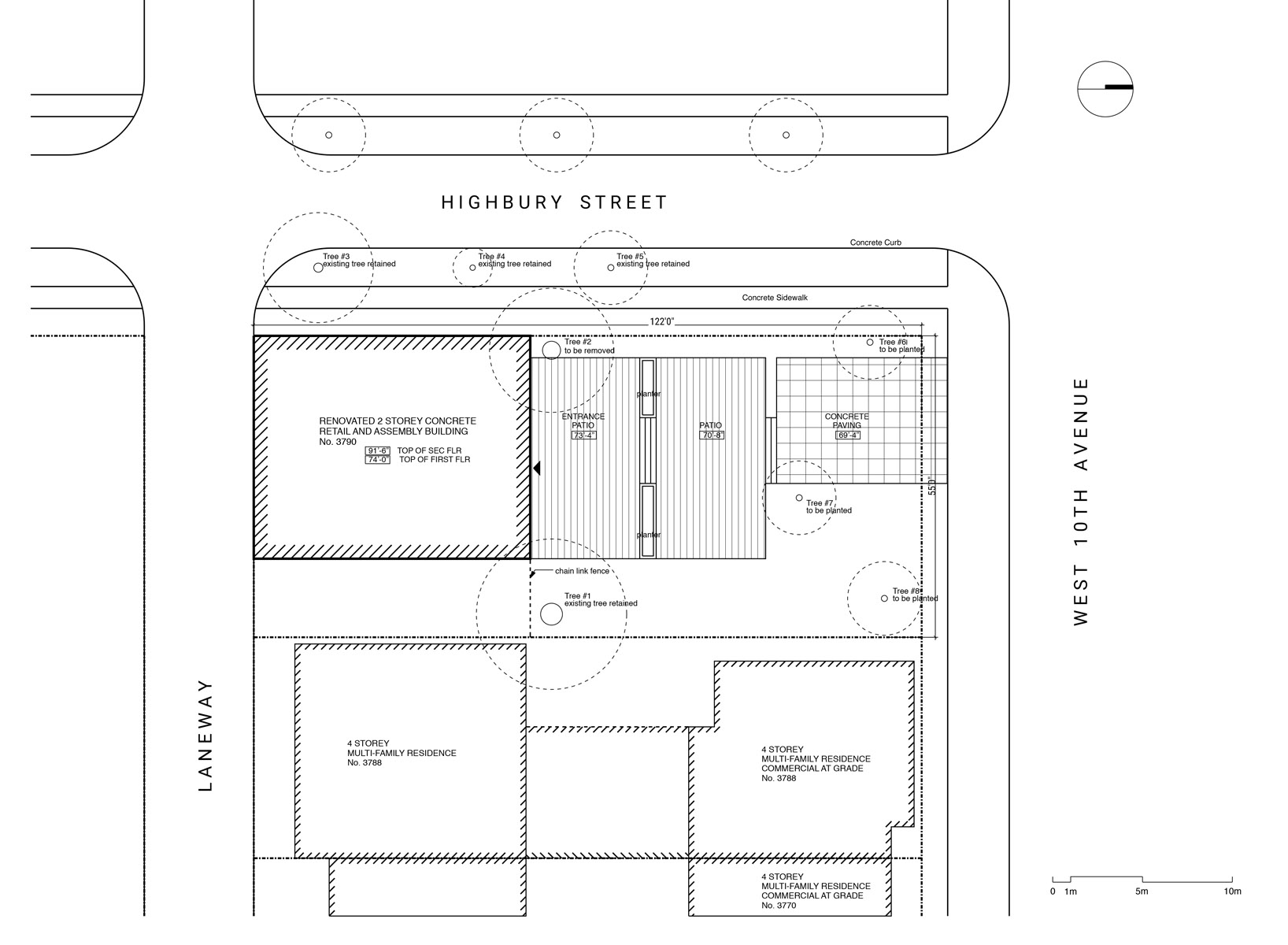

Site Plan

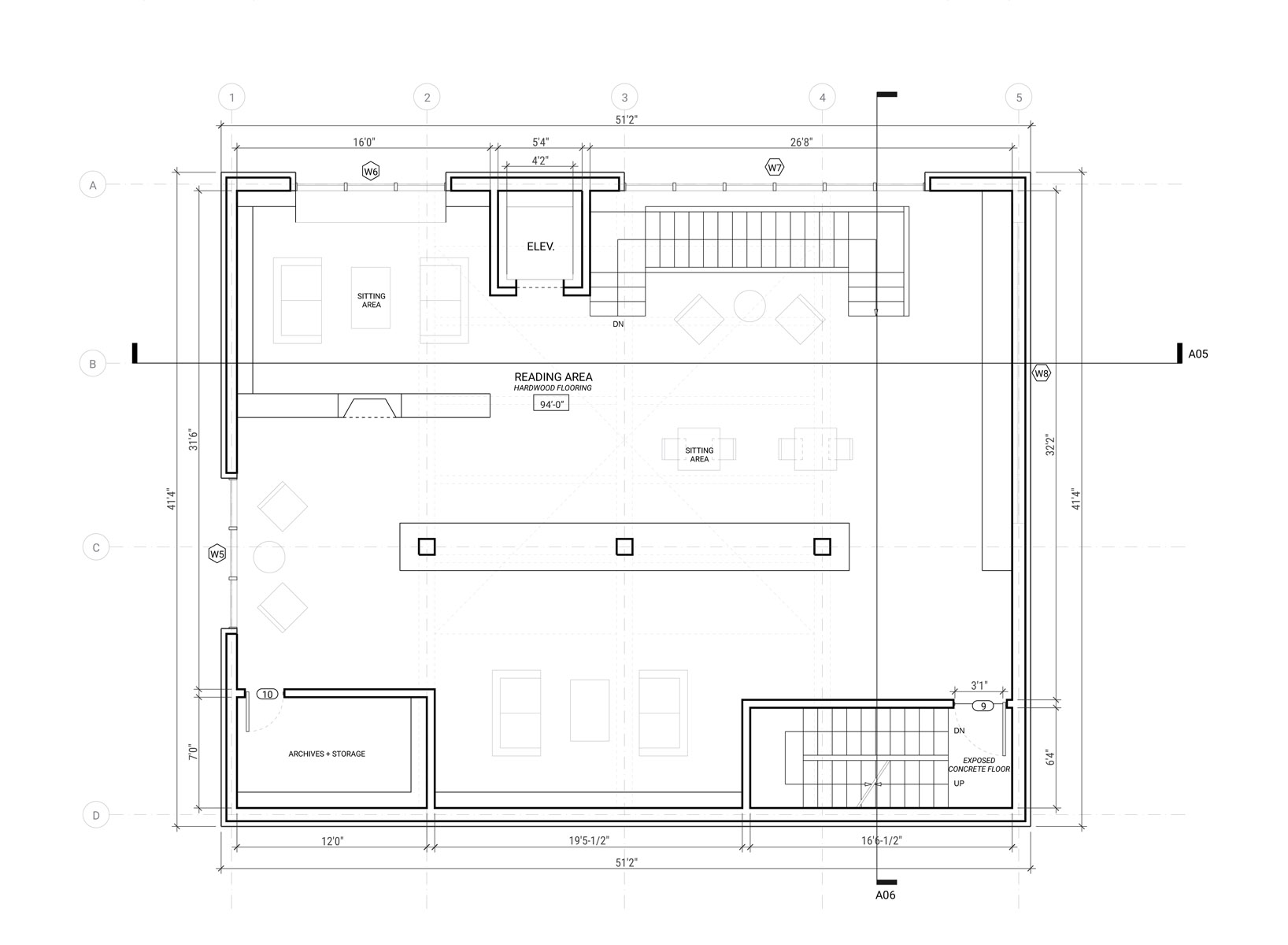

Second Floor Plan

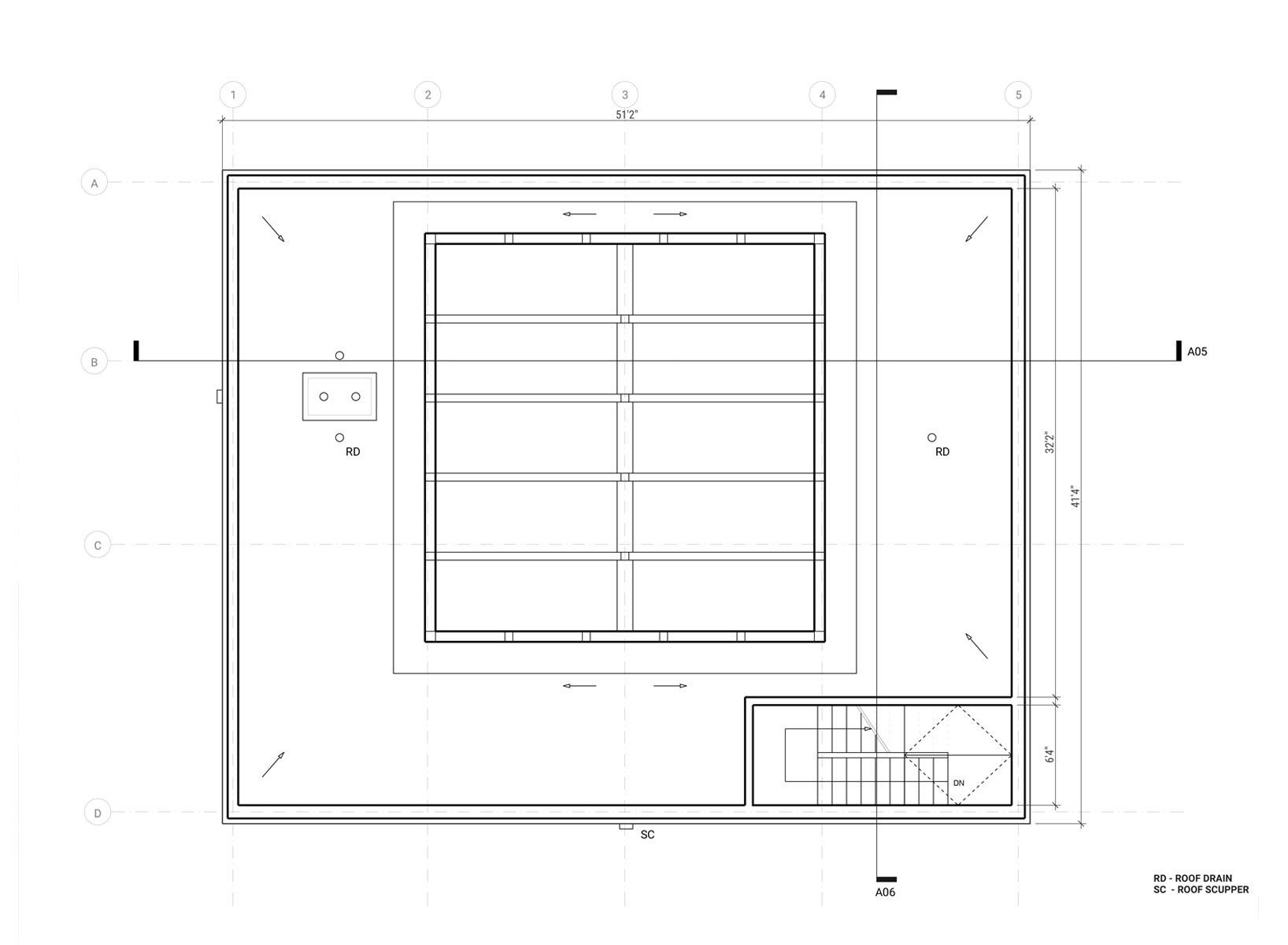

Roof Plan

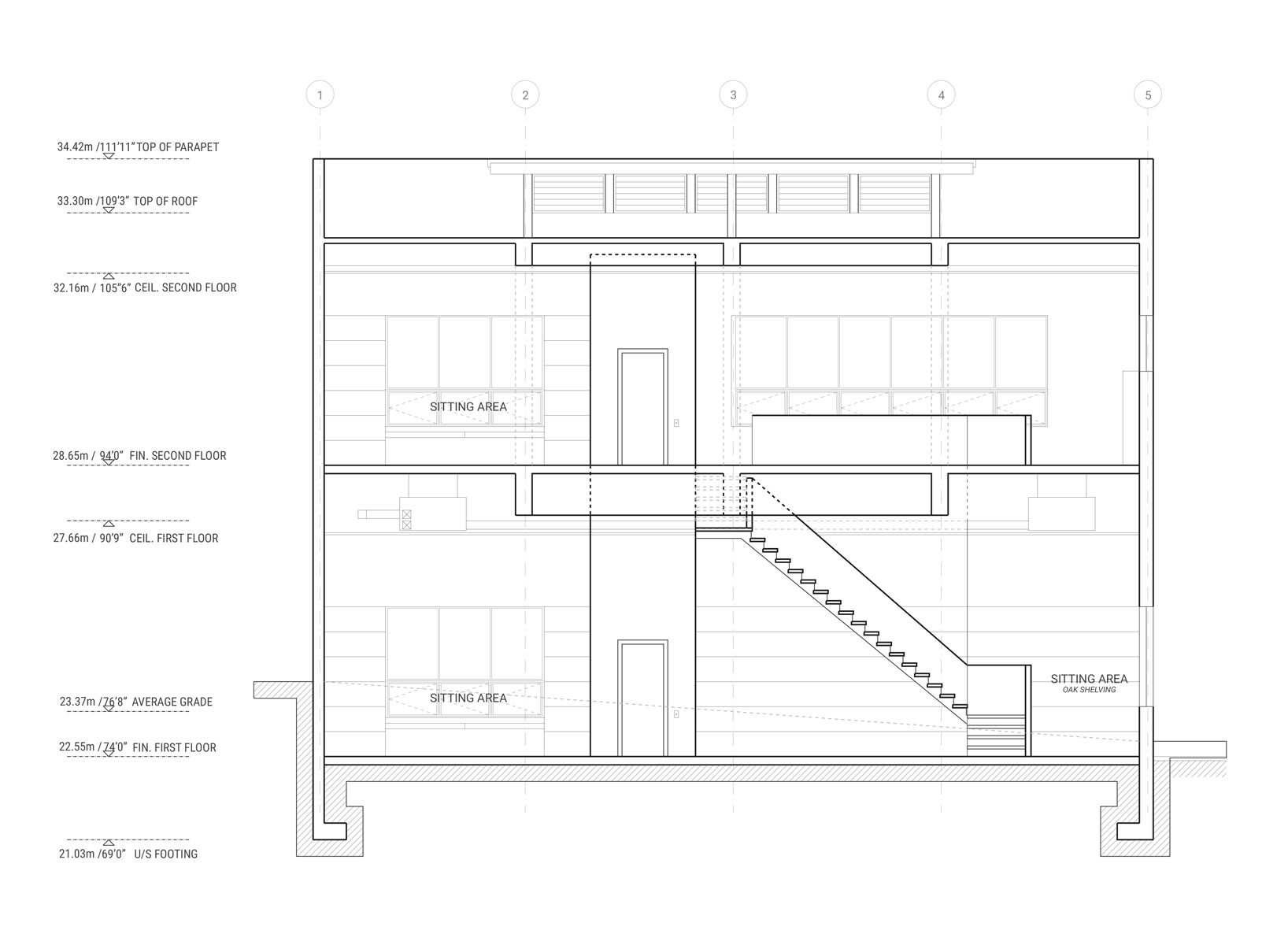

Section A05

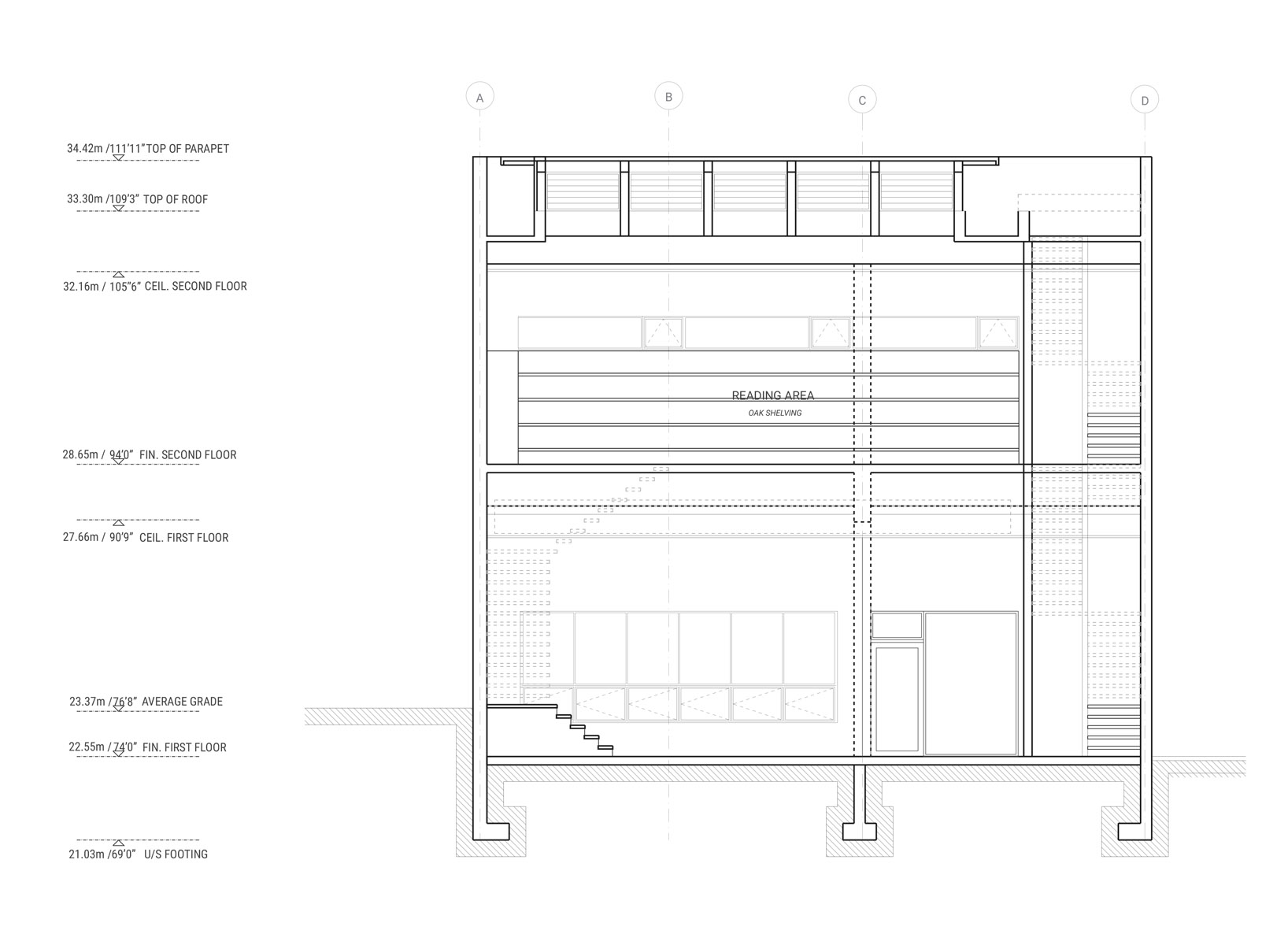

Section A06

Elevations N

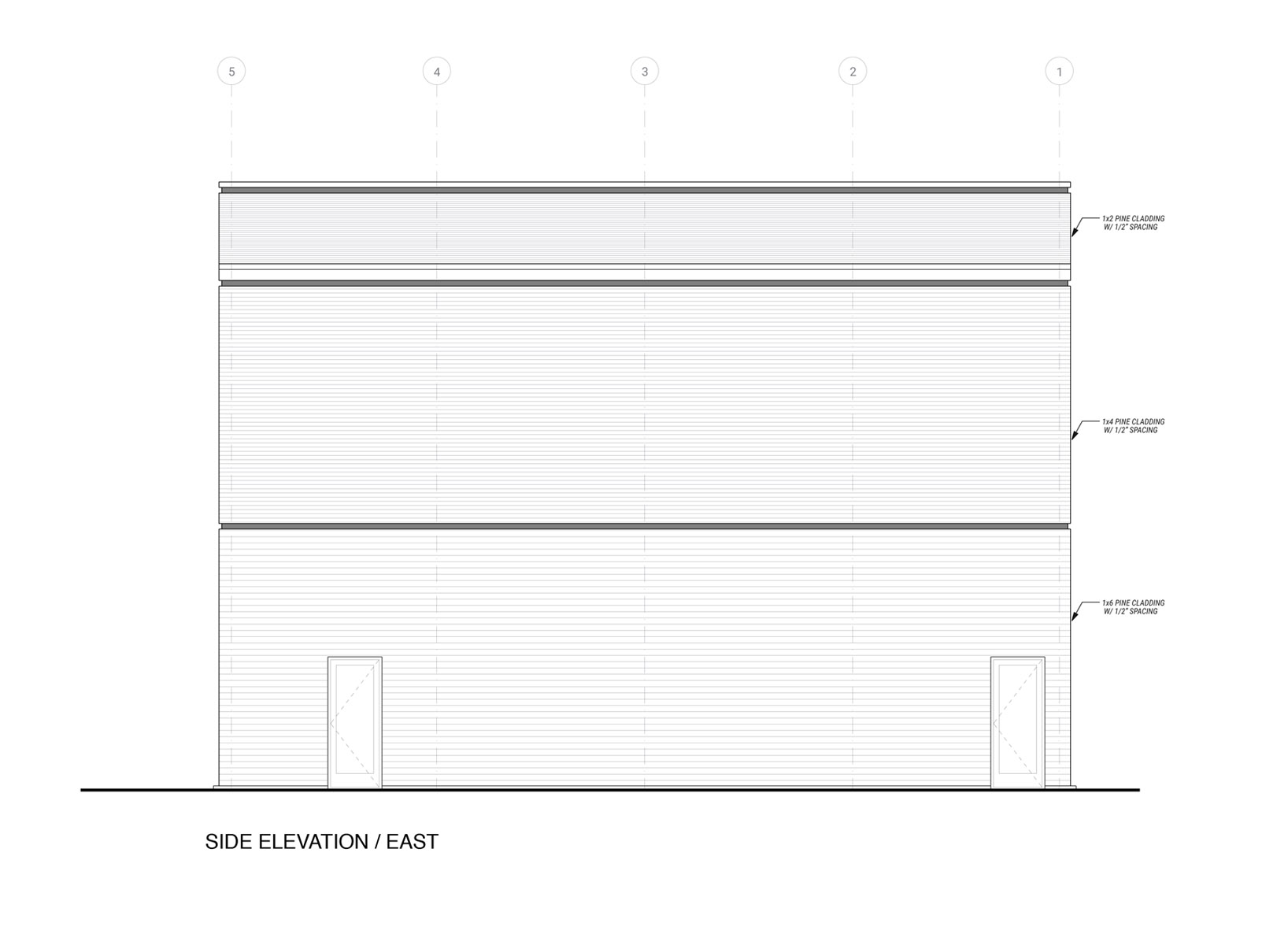

E

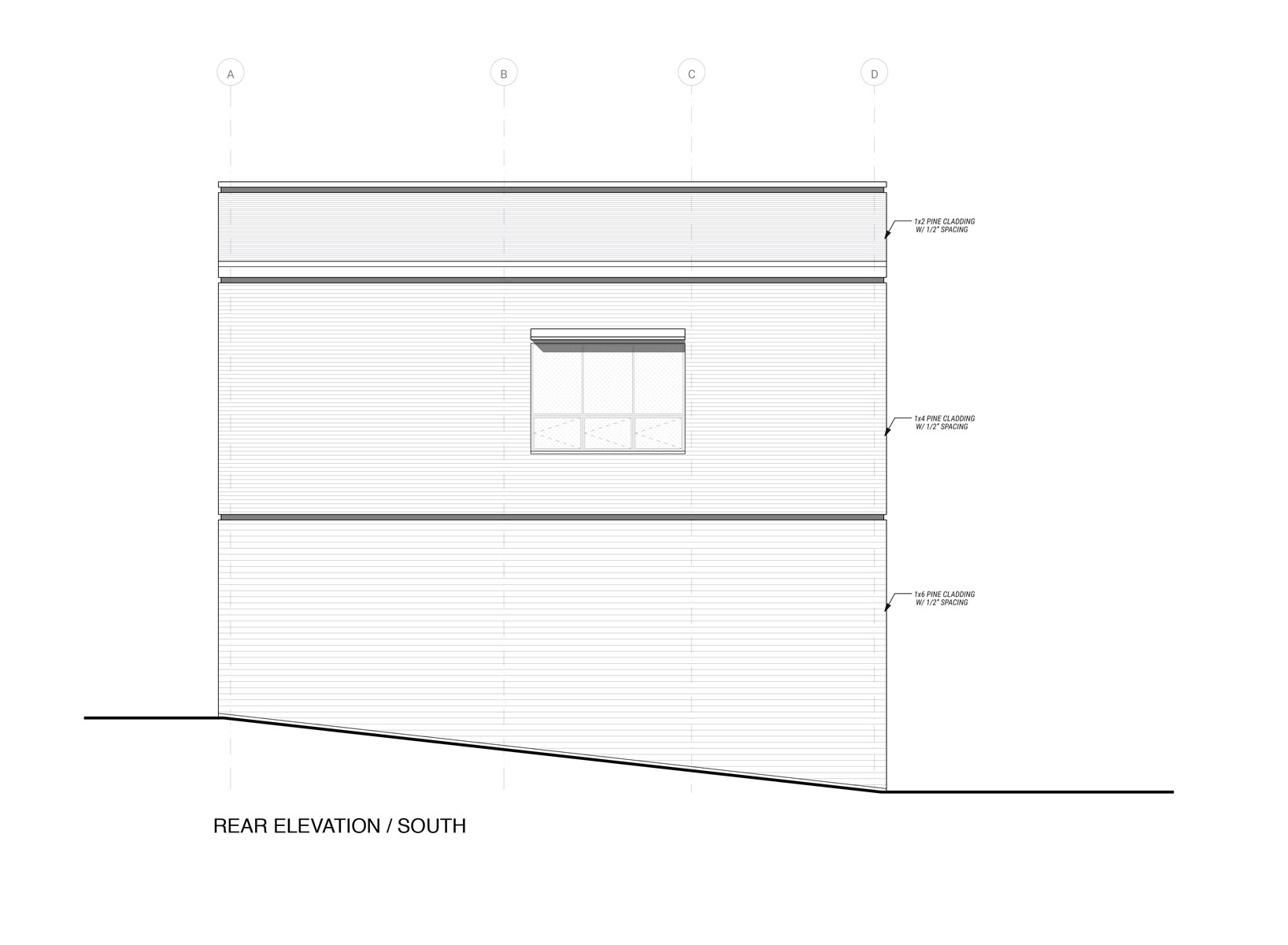

S

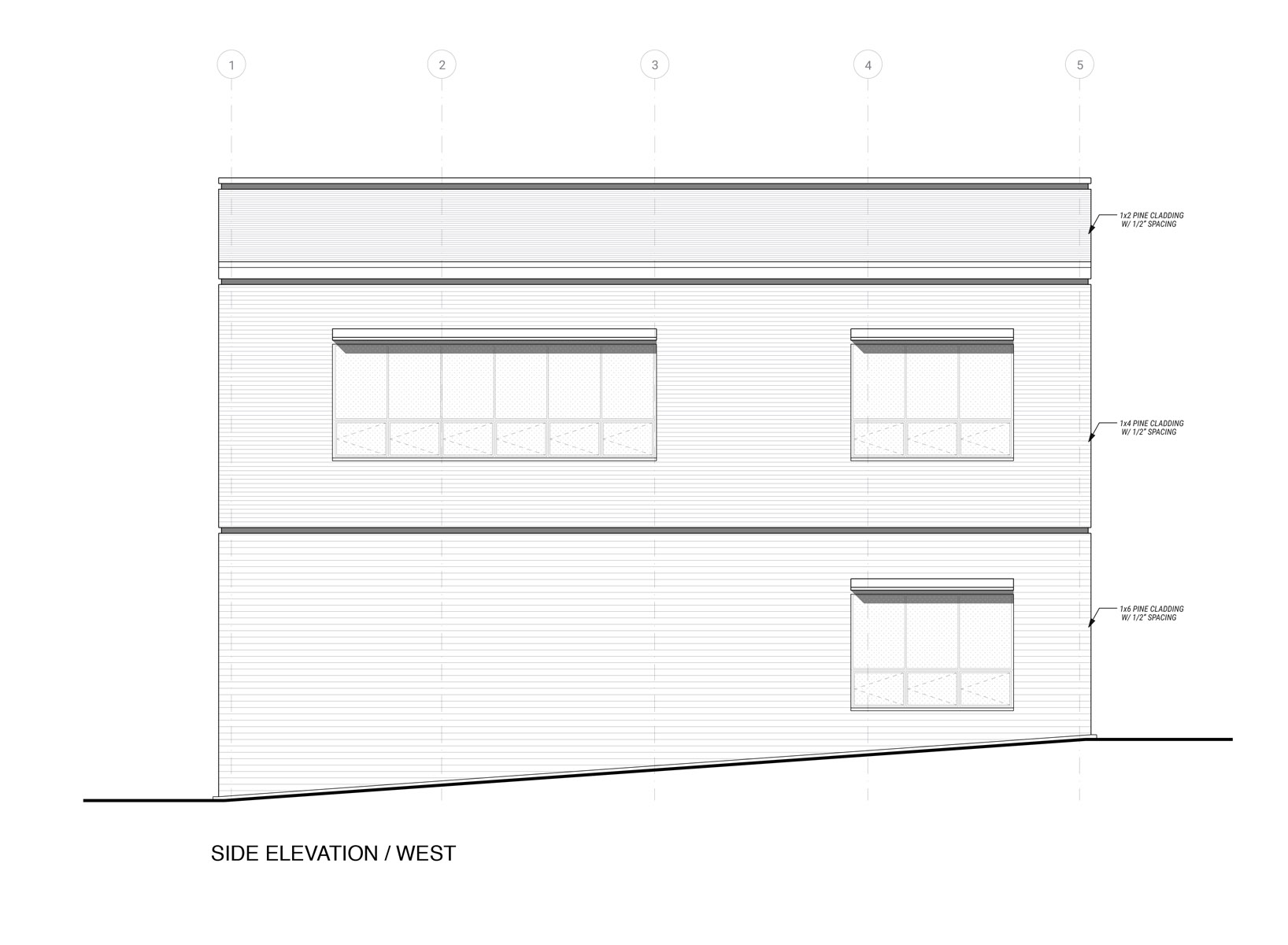

W

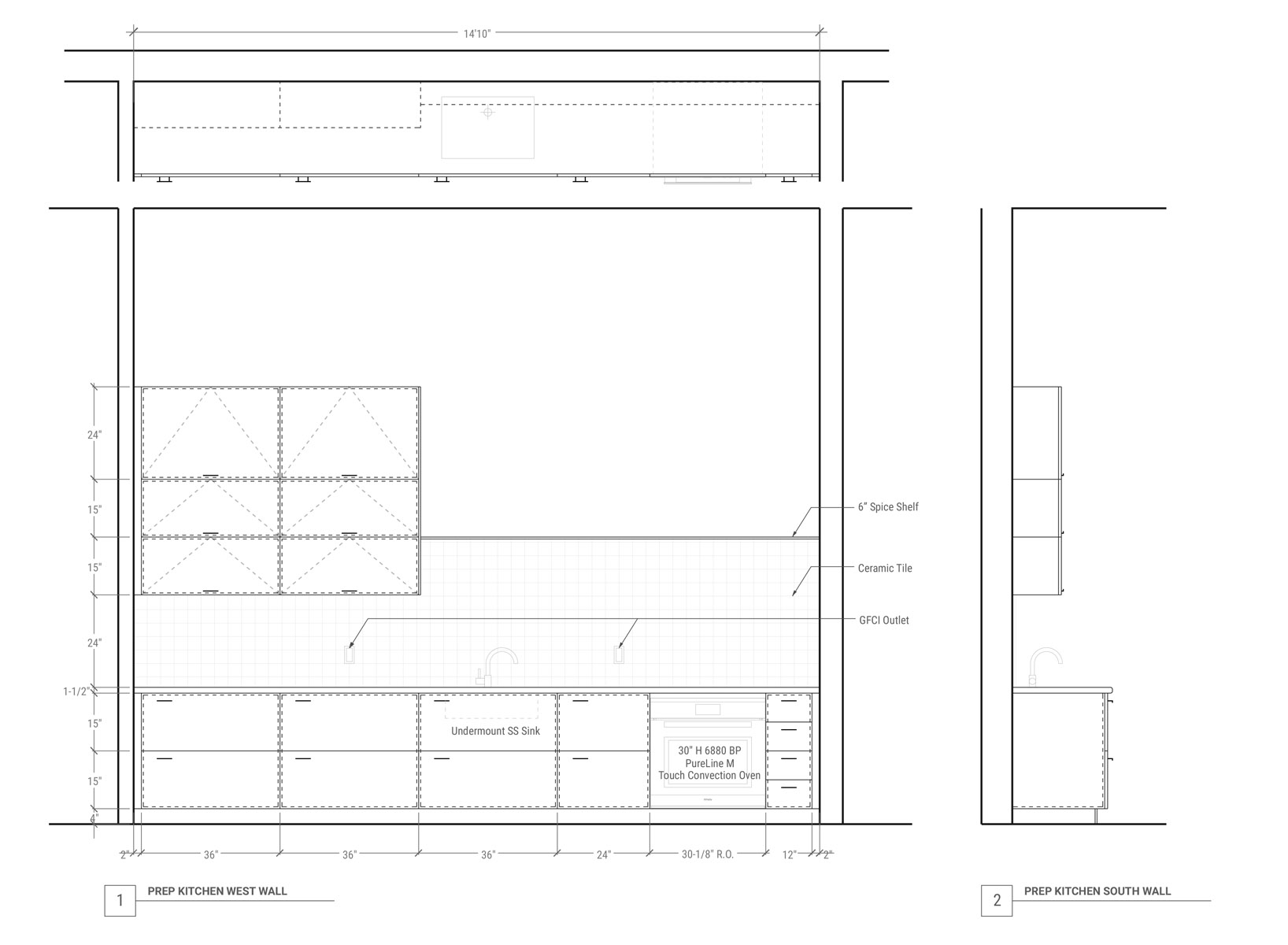

Kitchen Cabinetry

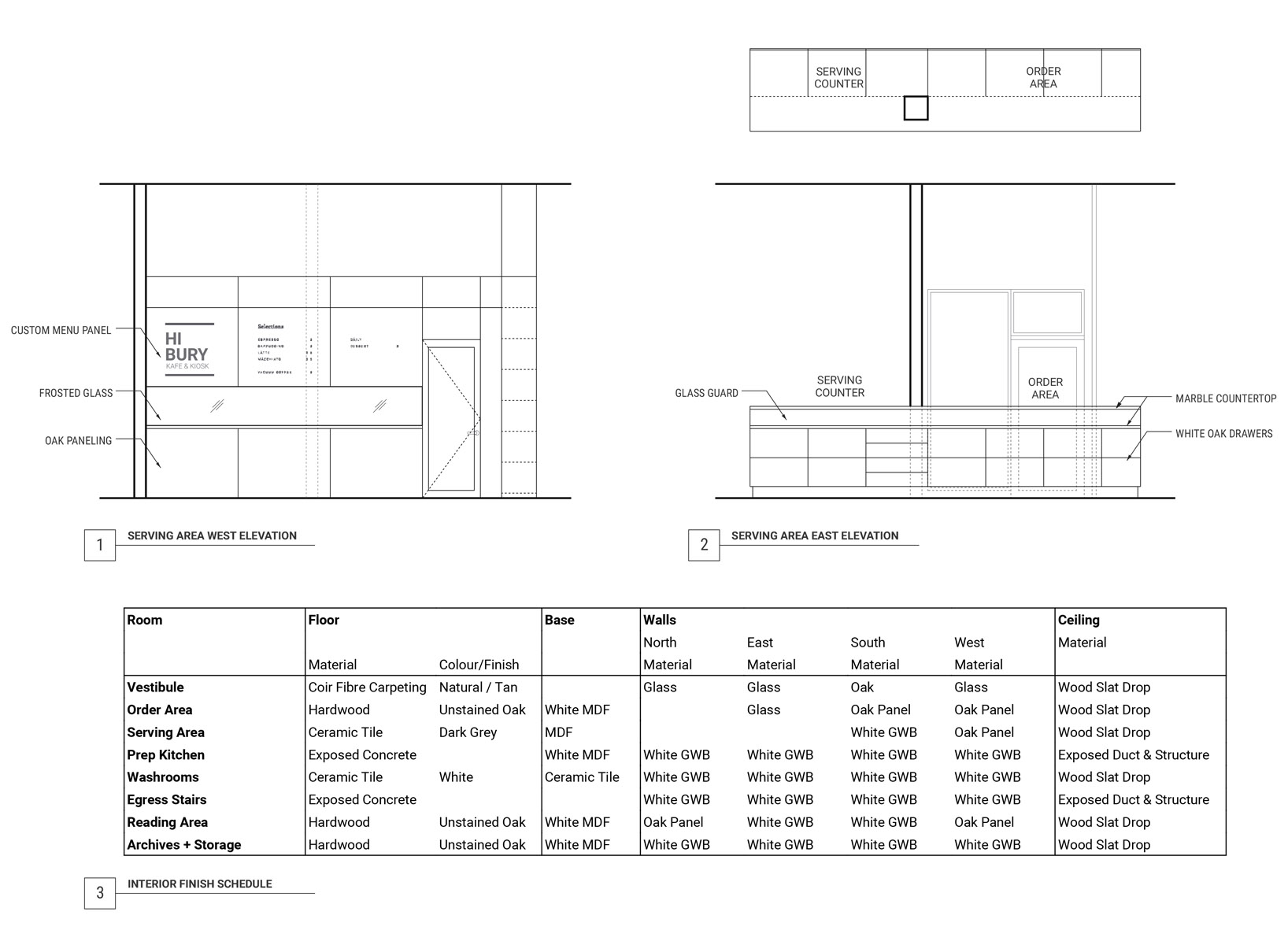

Interior Serving Area and Schedule

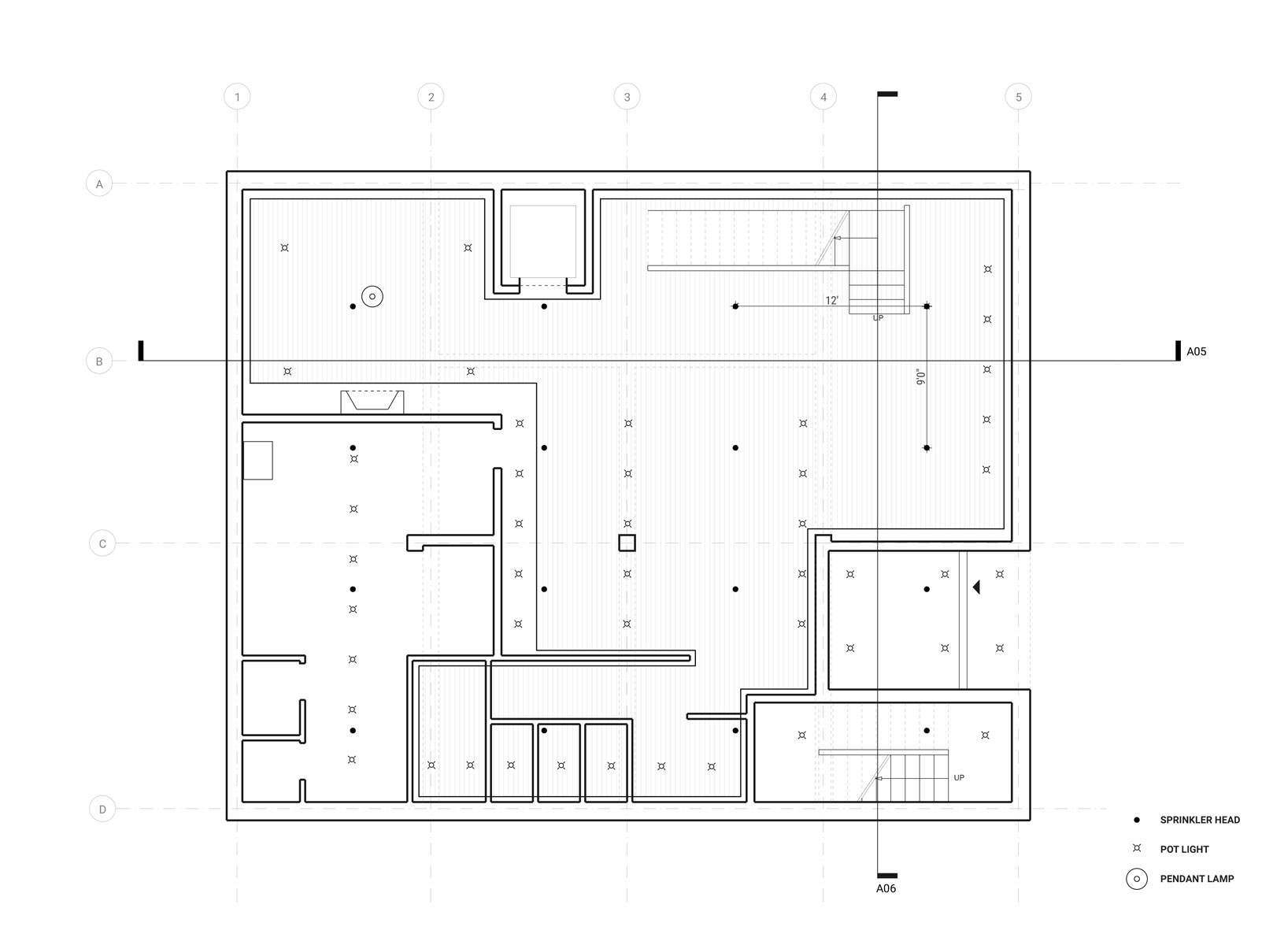

Reflected Ceiling Plan

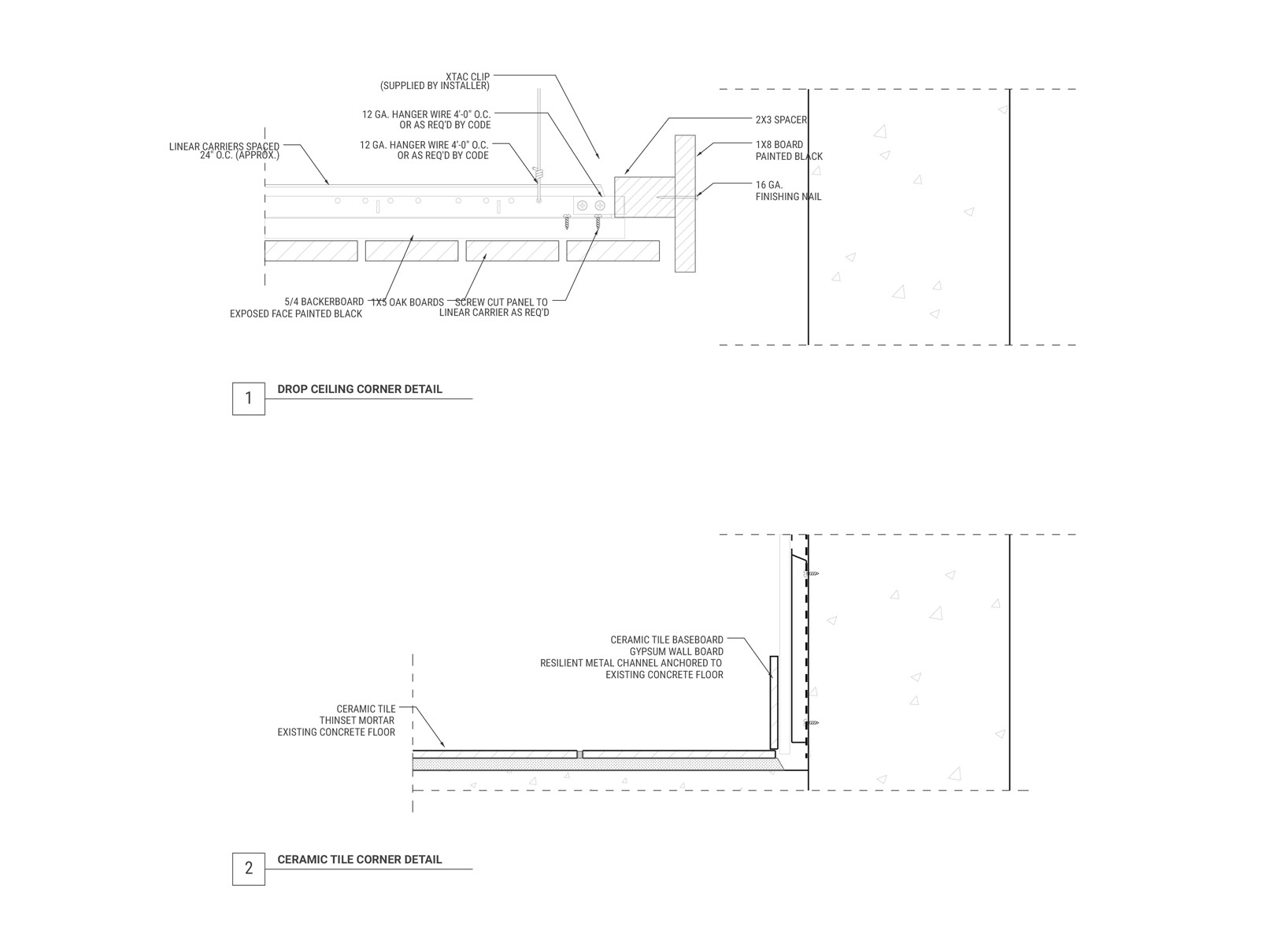

Interior Details

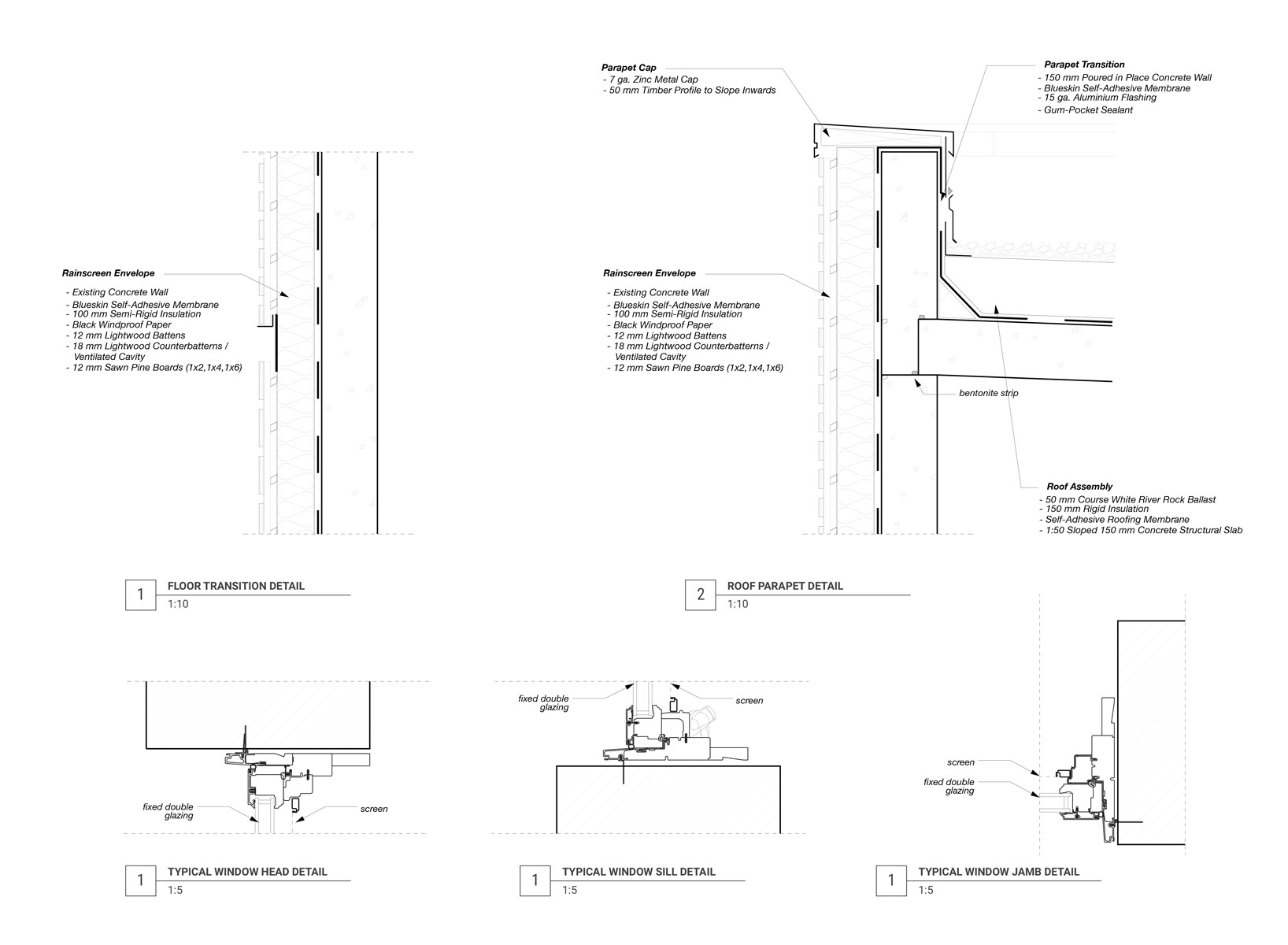

Exterior Details
